Description

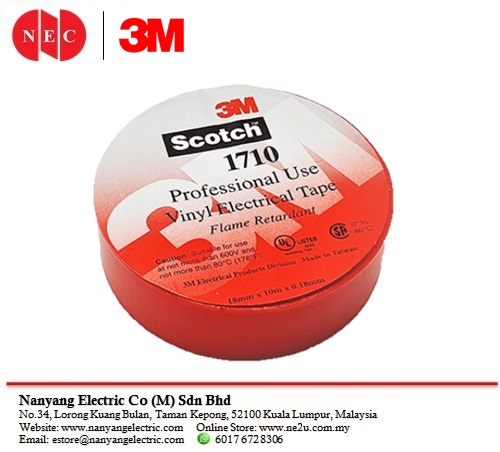

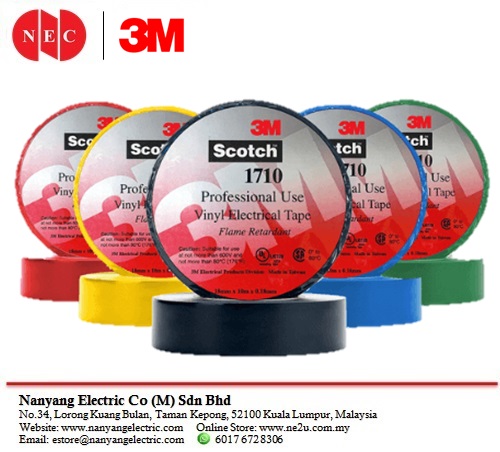

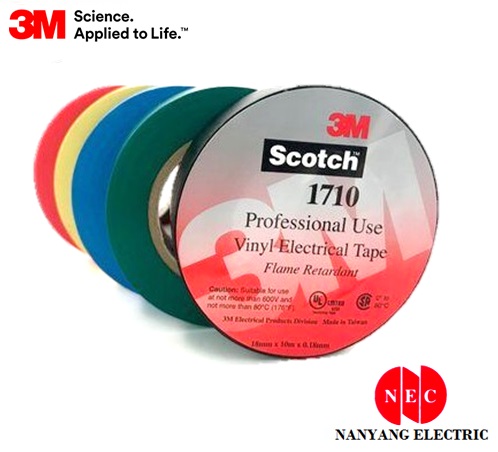

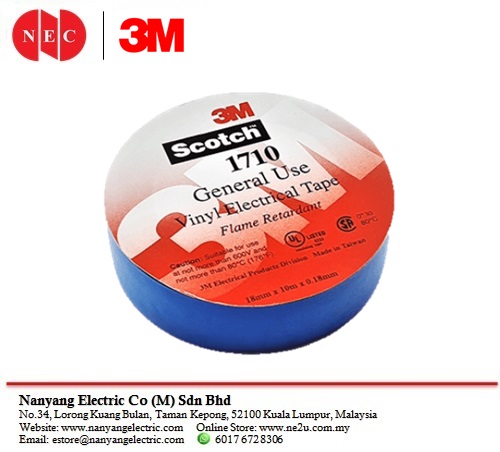

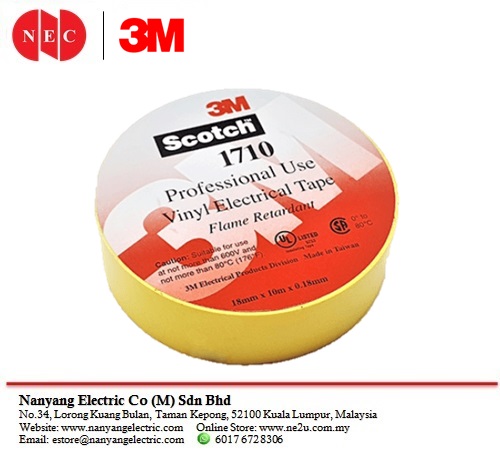

1710 Vinyl Electrical Tape is a good quality and economical general purpose vinyl insulating tape. It has excellent resistance to: abrasion, moisture, alkalies, acid and varying weather conditions (including sunlight). It is a polyvinyl chloride (PVC) tape that has a high wet dielectric strength, is conformable, and provides excellent mechanical protection with minimum bulk. It is a UL listed and CSA Certified “Insulating Tape”.
Applications
- Primary electrical insulation for all wire and cable splices rated up to 600 volts.
- Protective jacketing for high voltage cable splices and repairs.
- Harnessing of wires and cables.
- For indoor and outdoor applications.
- For above or below grade applications.
Typical Data/Physical Properties
Physical Properties
| Test Method | Typical Value |
| Temperature Rating UL 510 (UL file #E1292000) |
80° C (176° F) |
| CSA 22.2 (CSA #LR48769) |
80° C (176° F) |
| Flammability UL 510 |
Pass |
| Dielectric Strength* Standard Condition After Humidity Condition |
1000 V/mil (39,4kv/mm) >90% of Standard |
| Insulation Resistance* | >106 Megohms |
| Thickness* | 7 mils (0,177mm) |
| Elongation* | 150% |
| Break Strength* | 15 lb/in |
| Adhesion* To Steel To Backing *ASTM D1000 |
18 oz/in 18 oz/in |
Note: These are typical values and should not be used for specification purposes.
Installation Technique
The tape shall be applied in half-lapped layers with sufficient tension to conform and produce a uniform covering. In most applications, this tension will reduce the tape’s width to 3/4 of its original width. Apply the tape with no tension on the last wrap to prevent flagging.
Shelf Life
1710 Tape has a five year shelf life (from date of manufacture) when stored under the following recommended storage conditions. Store behind present stock in a clean, dry place at a temperature of 70ºF (21ºC) at 40-50% relative humidity. Good stock rotation is recommended.
